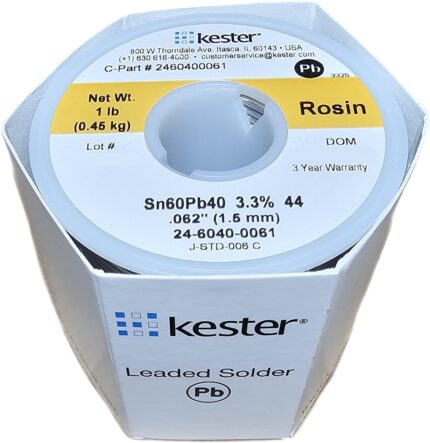

Kester 44 Rosin Core Solder Wire – 1 lb Spool
Kester 44 Rosin Core Solder Wire – 1 lb Spool
Back to products

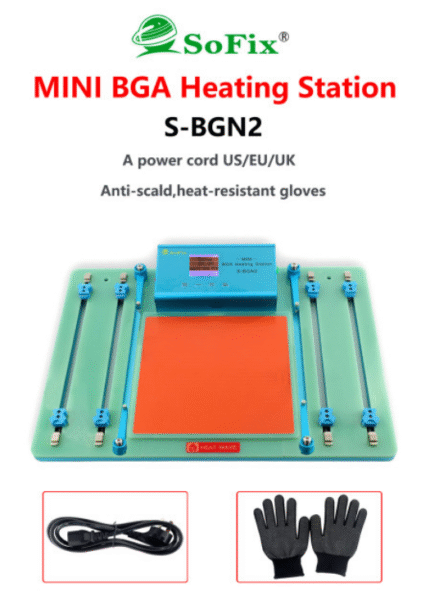

MINI BGA Heating Station S-BGN2 – Precision Tool for Motherboard Repairs
MINI BGA Heating Station S-BGN2 – Precision Tool for Motherboard Repairs $350.00

Module Analyzer M3 – Advanced LCD Display Testing & Signal Analysis Tool

Add to wishlist
Category:
Description

Description

🔍 Module Analyzer M3 – Advanced LCD Display Testing & Signal Analysis Tool

Multifunctional Display Tester | MIPI, HDMI, eDP, RS232, USB Support | High-Performance ARM Cortex-M Core

Product Overview:

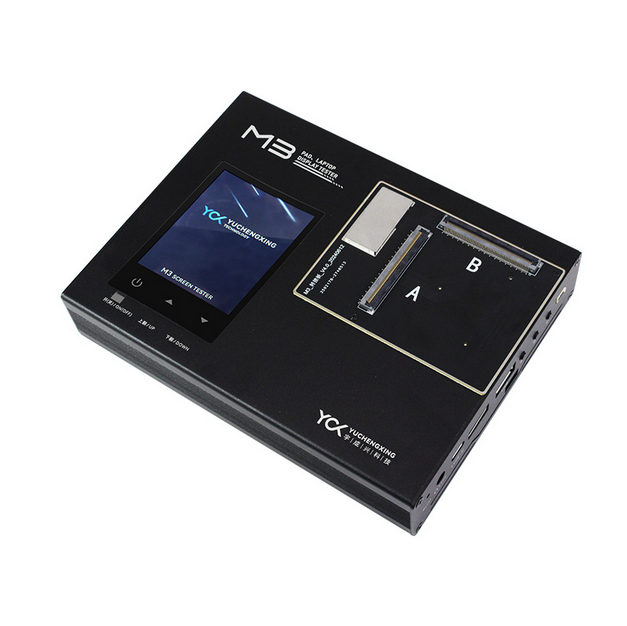

The Module Analyzer M3 is a high-performance, multifunctional device designed for comprehensive testing and analysis of LCD modules. It supports a wide range of display types, including TFT and AMOLED, and is equipped to handle various signal outputs such as MIPI (C-PHY, D-PHY), HDMI, eDP, RS232, and USB. This makes it an essential tool for professionals involved in display technology development, testing, and repair.

Key Features:

  • Versatile Signal Support: Compatible with multiple signal outputs, including MIPI, HDMI, eDP, RS232, and USB, ensuring broad applicability across different devices and modules.

  • Multi-Channel Power Outputs: Facilitates comprehensive testing by providing multiple power outputs, accommodating various testing scenarios.

  • High-Performance ARM Cortex-M Core: Utilizes a robust ARM Cortex-M core for efficient processing and accurate analysis.

  • Comprehensive Display Testing: Capable of testing and analyzing signals and images for various display modules, ensuring optimal performance and quality.

  • Secondary Development Support: Offers support for secondary development, allowing for customization and integration into existing testing frameworks.

  • User-Friendly Interface: Designed with an intuitive interface for ease of use, reducing the learning curve for new users.

Ideal For:

  • Display Technology Developers: Engineers and developers working on the design and testing of LCD modules.

  • Repair Technicians: Professionals involved in the repair and maintenance of devices with LCD displays.

  • Quality Assurance Teams: Teams responsible for ensuring the performance and reliability of display modules.

  • Educational Institutions: Universities and training centers focusing on electronics and display technologies.

Enhance your LCD module testing capabilities with the Module Analyzer M3 – a versatile and powerful tool designed for professionals in the display technology industry.
