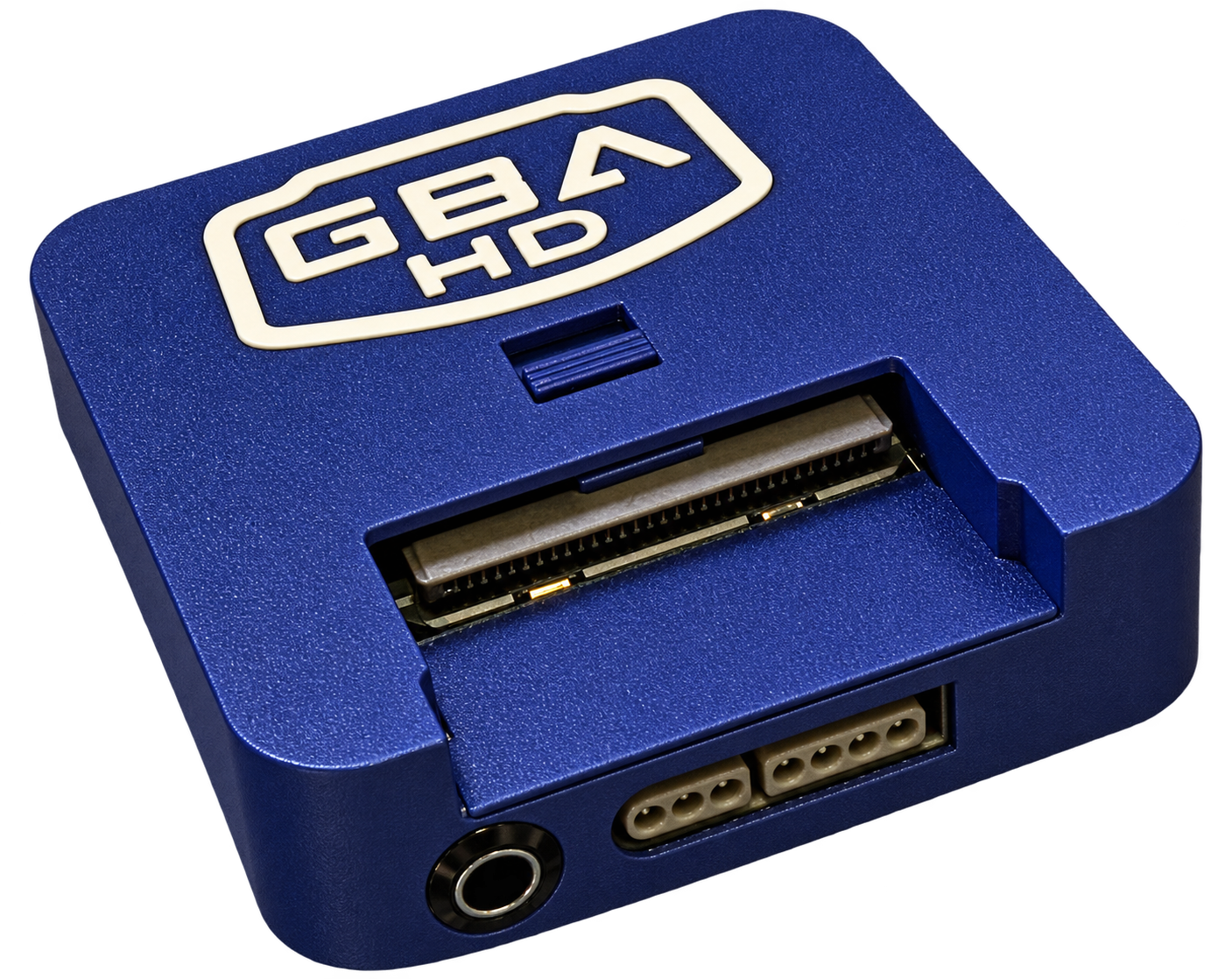

GBAHD Universal Upcycle Kit

Play Game Boy & Game Boy Advance Games on Your TV in 720p / 1080p

Turn original Game Boy Advance hardware into a dedicated HDMI gaming system using the
GBAHD Universal Upcycle Kit. Play Game Boy and GBA classics on a modern television using
720p or 1080p HDMI output, an SNES-style controller, or many common Bluetooth controllers.

⚡ Give a Broken GBA a New Life

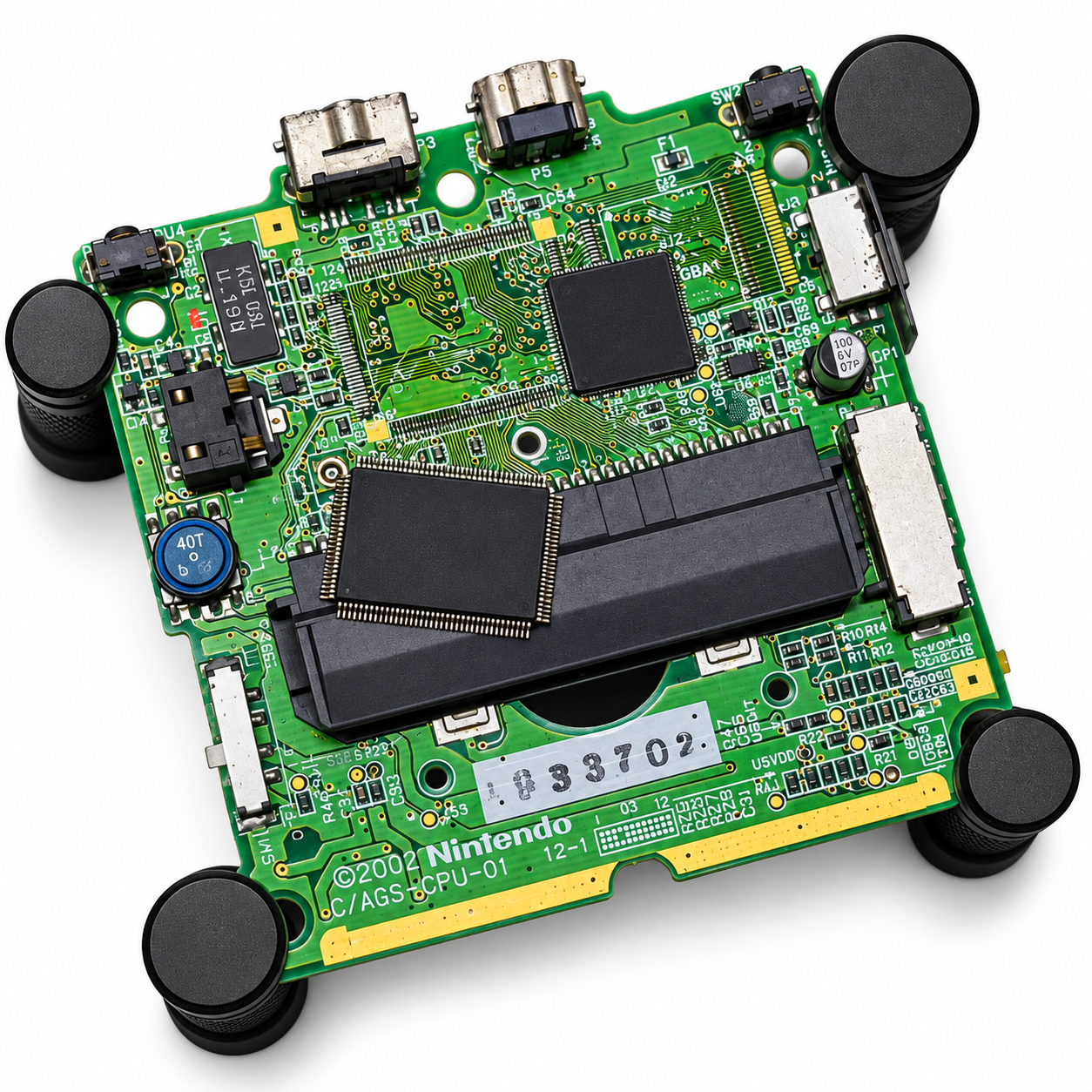

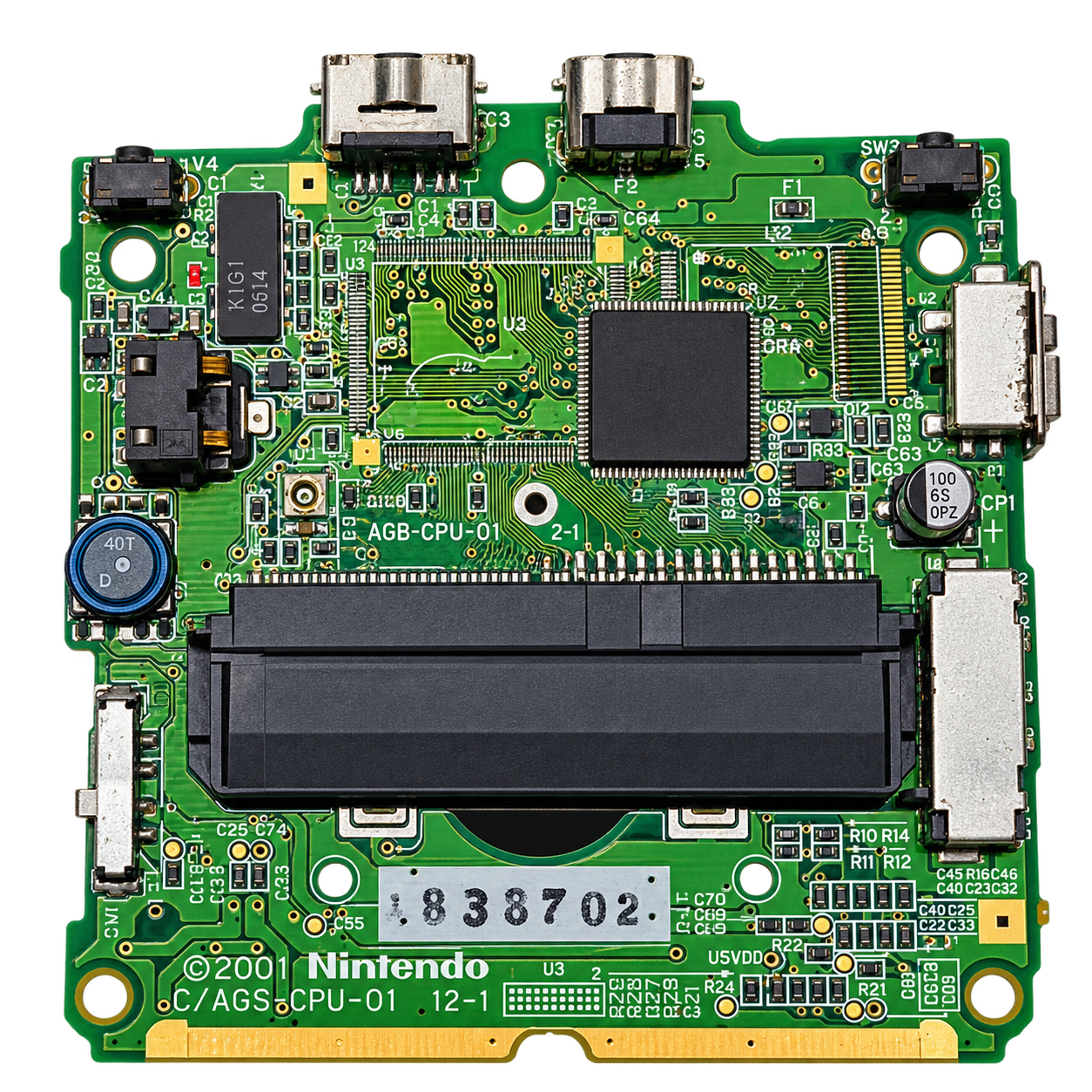

The GBAHD Upcycle is designed to reuse some of the most important original components from a donor
Game Boy Advance or Game Boy Advance SP.

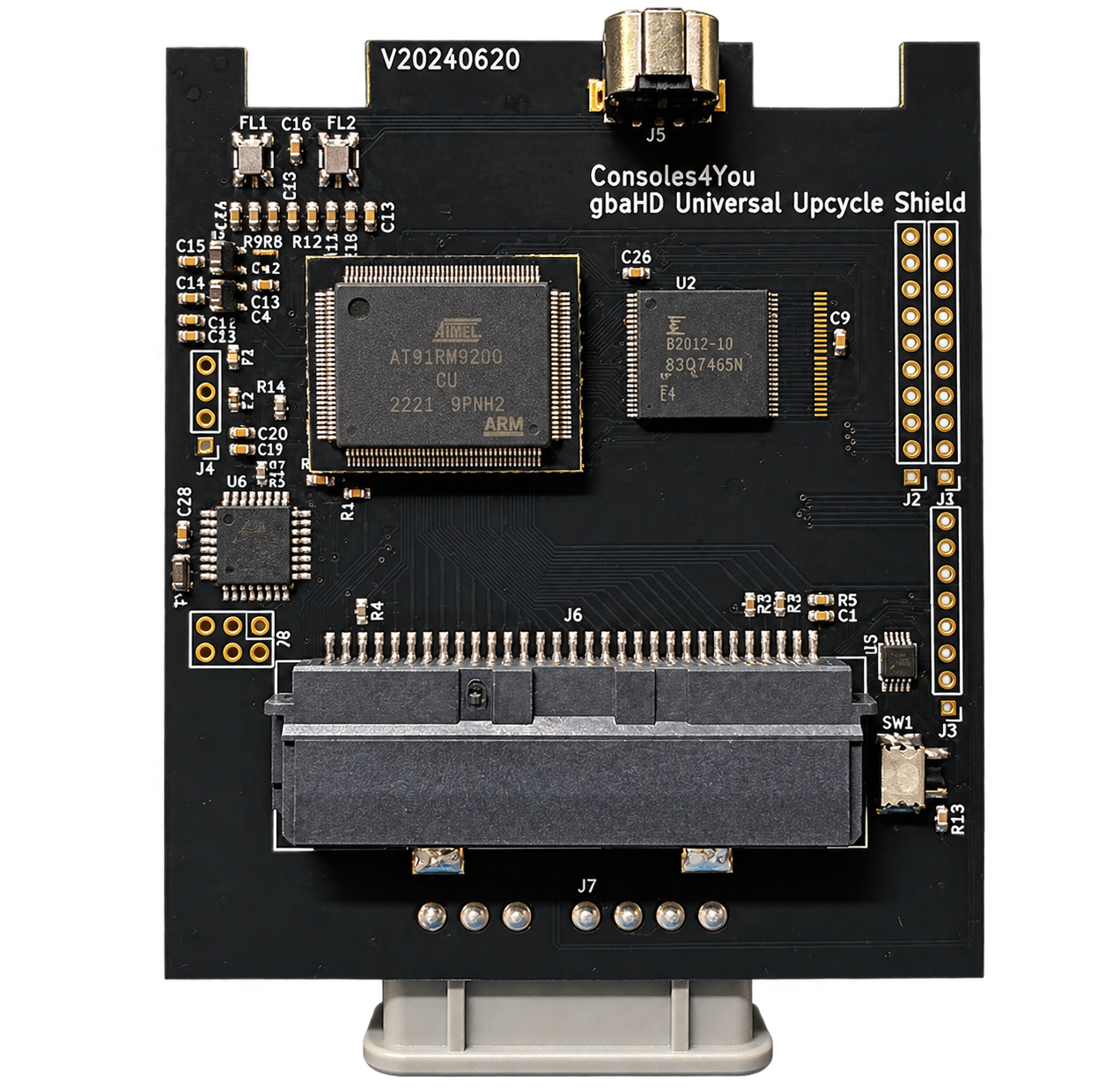

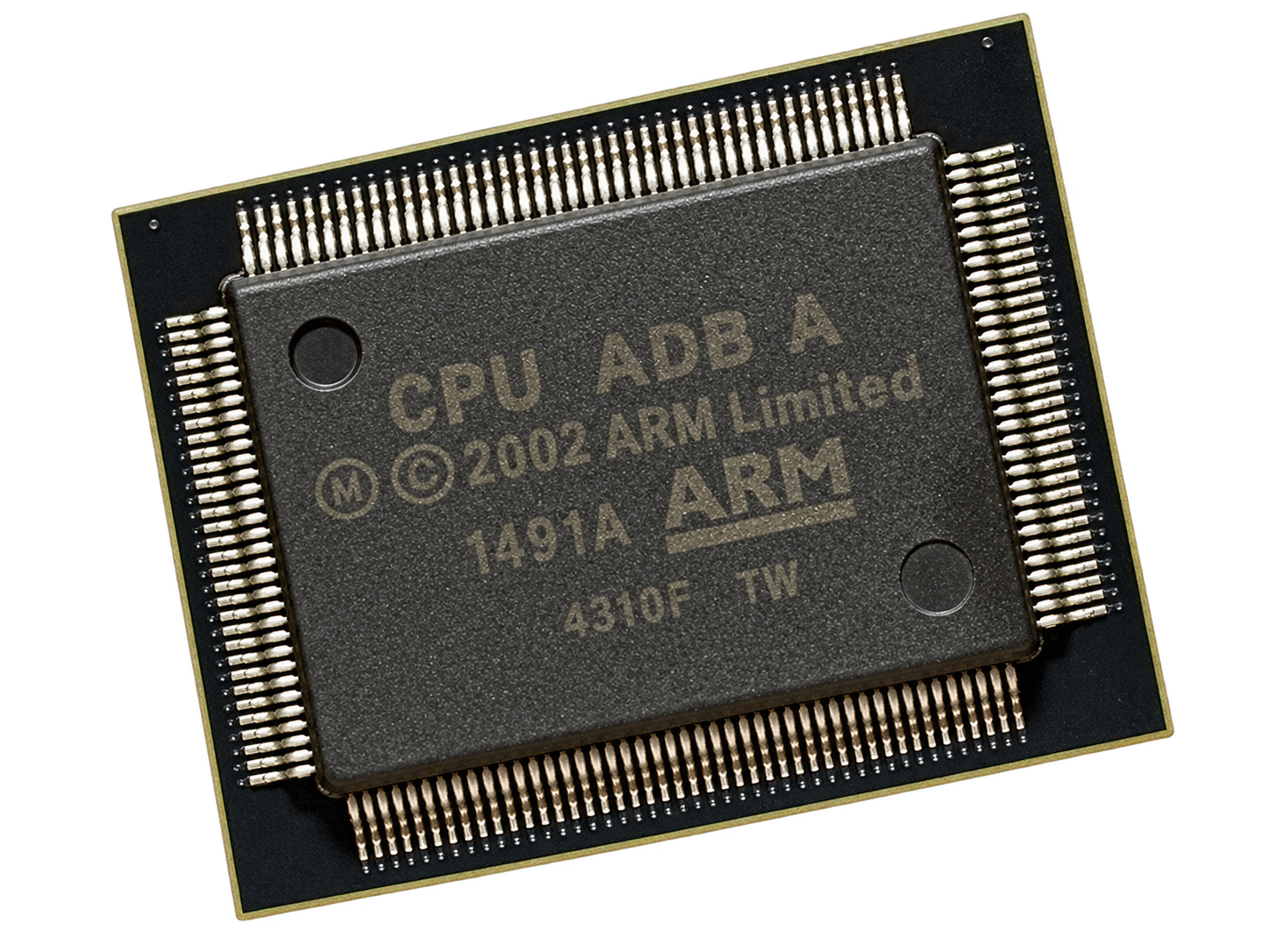

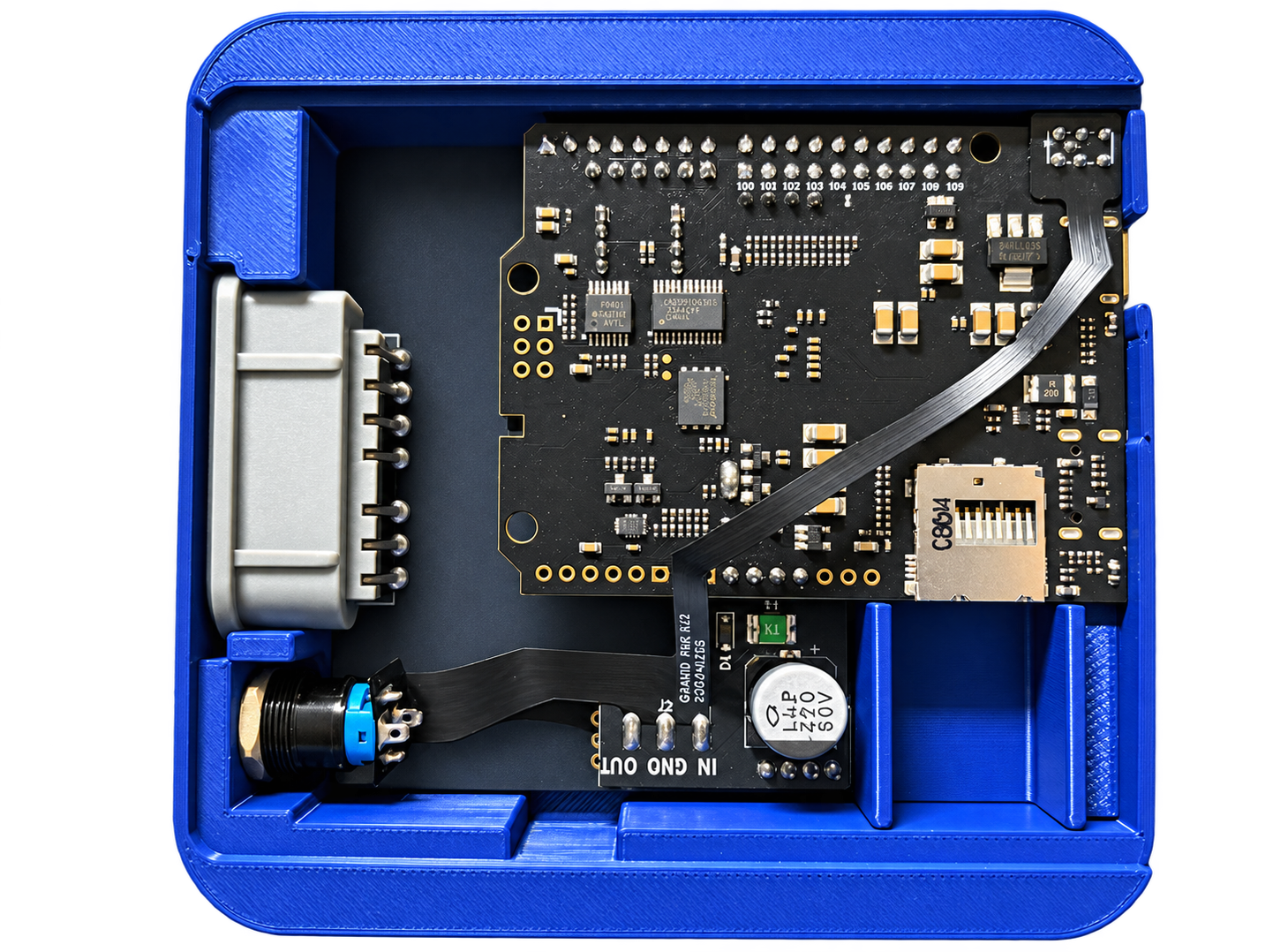

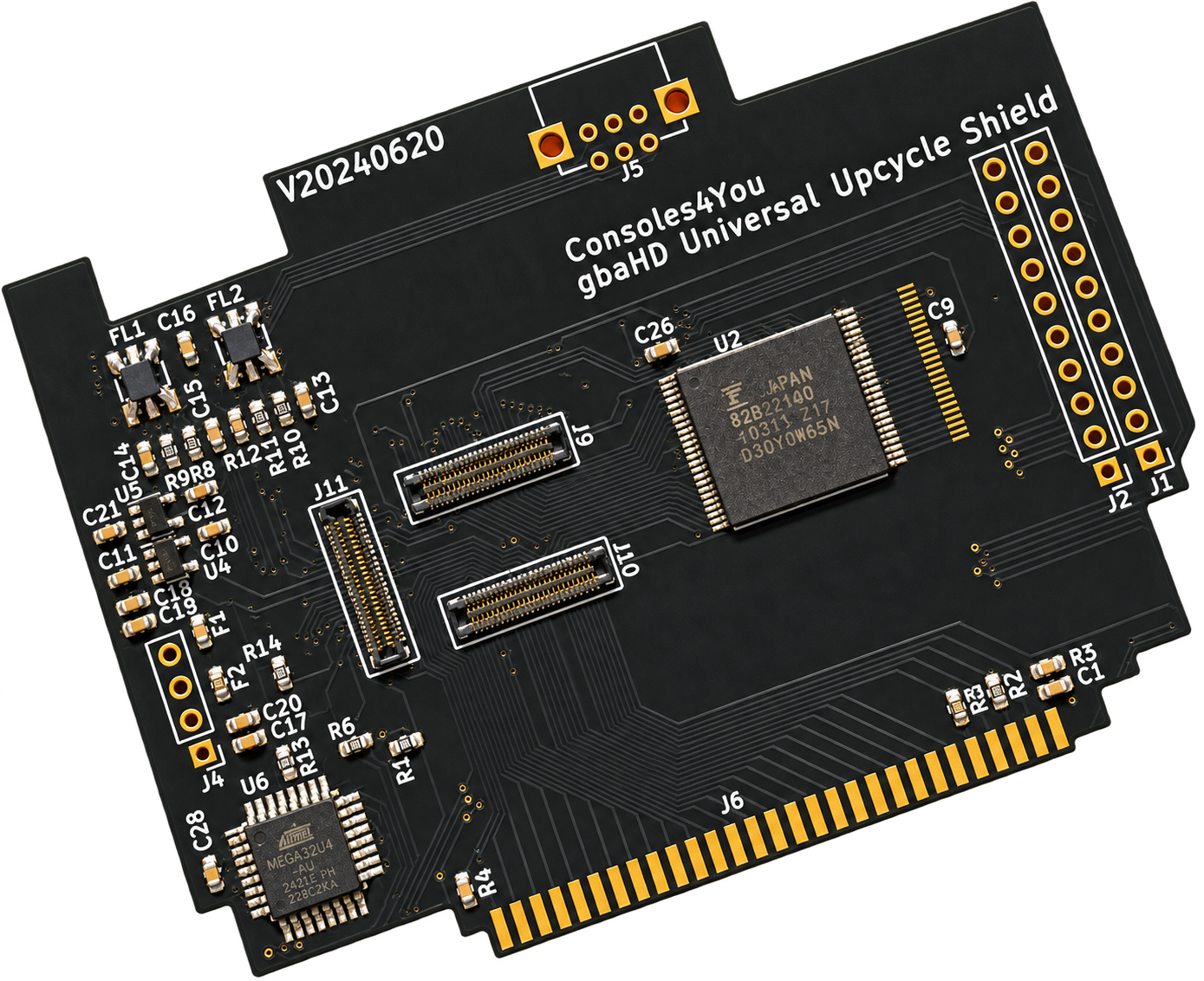

The original GBA CPU and RAM are transplanted onto a new circuit board, where they work together
with an FPGA-based video system to convert the image to HDMI with extremely low added latency.

Instead of relying on the original handheld display and housing, the completed system becomes a dedicated
Game Boy Advance HDMI console for your television or monitor.

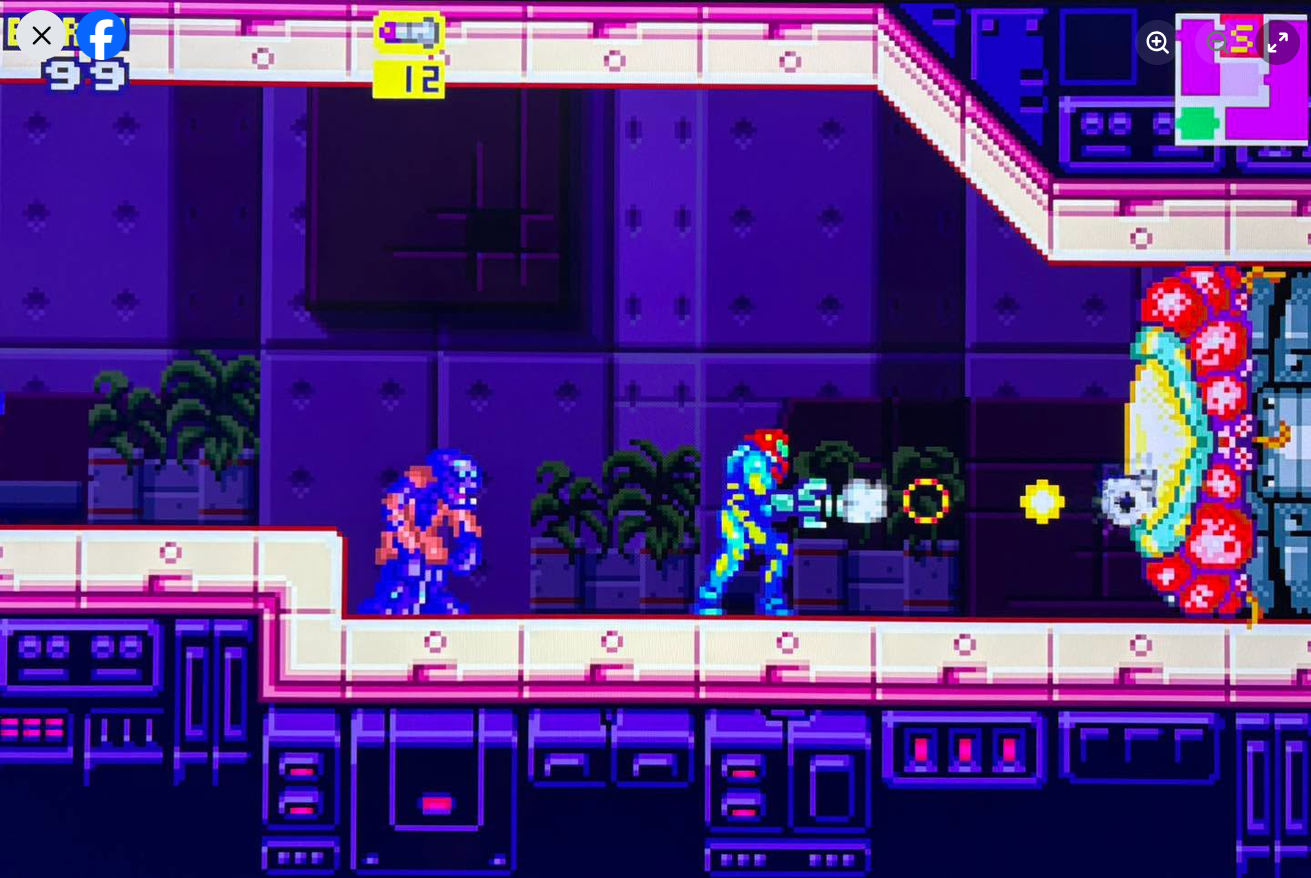

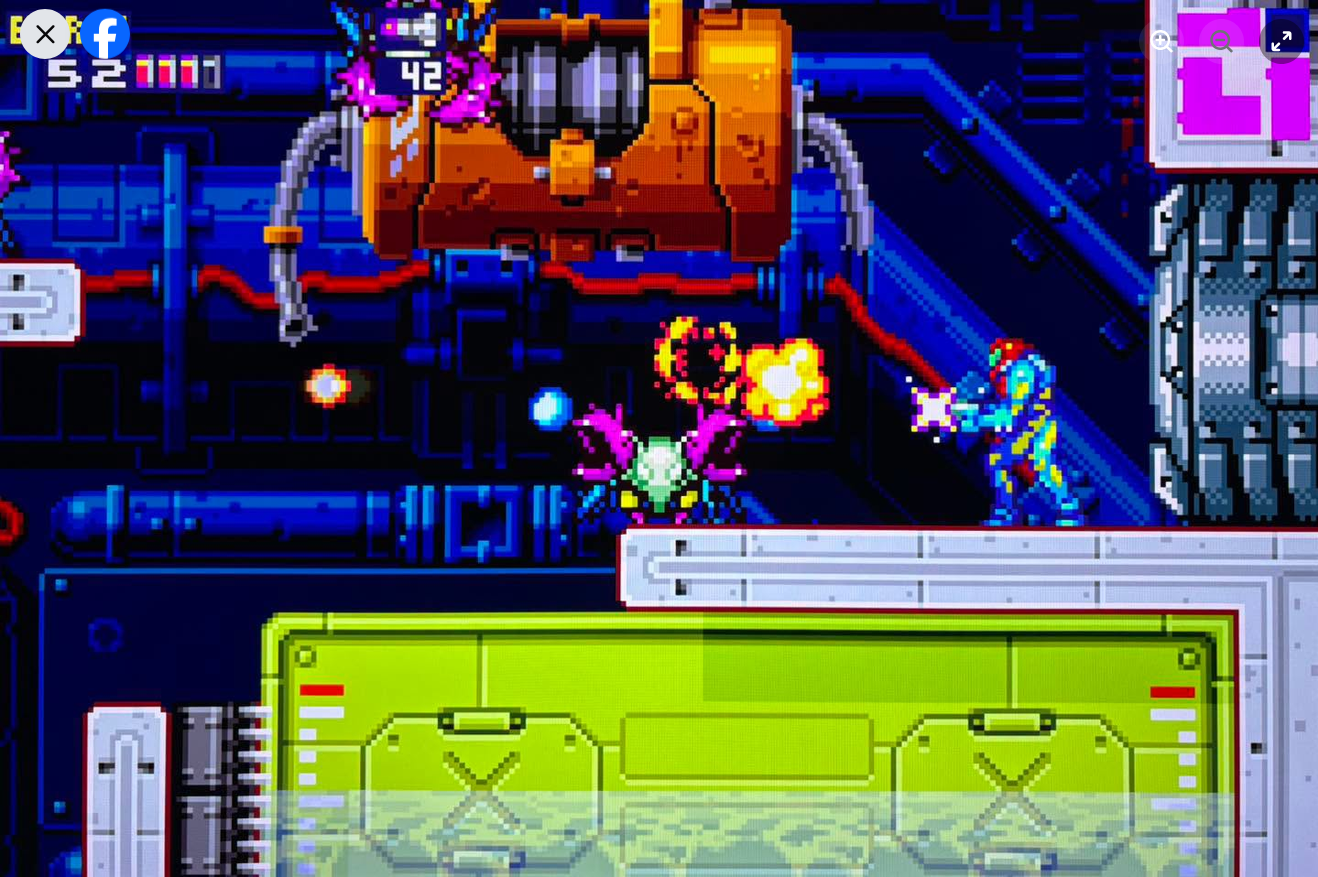

Play classics such as Pokémon Blue, Metroid Fusion, The Legend of Zelda, Mario, Castlevania
and many other Game Boy and GBA titles on the big screen.

⚠ 1080p Compatibility Notice

Certain televisions and monitors may experience compatibility problems with the GBAHD’s
1080p output. If your display does not behave correctly at 1080p, use
720p mode.

GBAHD Features

• 720p and 1080p HDMI output
• Resolution selectable through the web interface
• FPGA-based low-latency video processing
• Bluetooth controller support
• Controller button mapping through the web interface
• On-Screen Display / OSD
• 2× and 4× image smoothing
• Experimental pixel-grid effects
• In-game reset function
• Firmware upgrades through the web interface
• Designed to reuse original GBA CPU and RAM
• Compatible with SNES-style and many common Bluetooth controllers

▓ Image Smoothing

GBAHD includes both 2× smoothing and 4× smoothing. These are modified versions of the
Scale2x algorithm and can soften the appearance of enlarged Game Boy Advance graphics on modern displays.

Note:
Smoothing is currently disabled while using 1080p resolution.

▦ Pixel Grid Modes

The experimental pixel-grid feature can recreate some of the visual character of original Game Boy Advance screens.

Light Pixel Grid
Designed to provide an appearance similar to the Game Boy Advance SP / AGS display.

Dark Pixel Grid
Designed to provide more of the visual character associated with the original Game Boy Advance / AGB display.

⌨ GBAHD OSD & Reset Controls

Open the On-Screen Display:

From the OSD you can configure features including smoothing and pixel-grid effects.

In-Game Reset:

🎮 Bluetooth Controller Support

Use compatible Bluetooth controllers instead of relying on the original handheld controls.
Controller buttons can be configured and remapped through the built-in GBAHD web interface.

This makes the GBAHD especially well suited for a permanent
retro gaming setup, living room console, arcade installation or game-room system.

⌁ Web Interface

• 720p / 1080p resolution selection
• Bluetooth controller configuration
• Controller button mapping
• Firmware upgrades

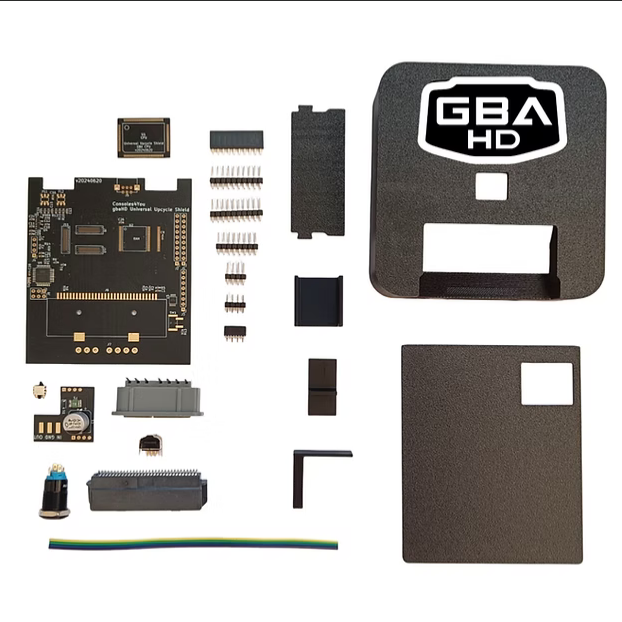

What’s Included

• GBAHD Universal Upcycle Kit
• 1-meter Mini HDMI to HDMI cable
• USB 2.0 to USB-C cable
• Spartan Edge Accelerator

⚠ Additional Parts Required

The following parts are not included and must be purchased or supplied separately:

• MicroSD card
• Donor Game Boy Advance or Game Boy Advance SP

The donor system provides the original CPU and RAM required for the GBAHD conversion.

Need Us to Build It?

The GBAHD conversion requires advanced electronics work including
microsoldering, component removal and transplantation of the original GBA CPU and RAM.

If you would like Trílex Fix Repair Group LLC to complete the GBAHD conversion for you,
please contact us before ordering.

We can review your donor console, installation requirements and available service options before you purchase the kit.

Advanced Installation Notice

This product is intended for technicians and enthusiasts experienced with electronics repair,
microsoldering, component removal and PCB-level work. Improper installation can permanently damage
the donor CPU, RAM, donor motherboard or GBAHD hardware. Professional installation is recommended
if you do not have advanced board-level repair experience.
