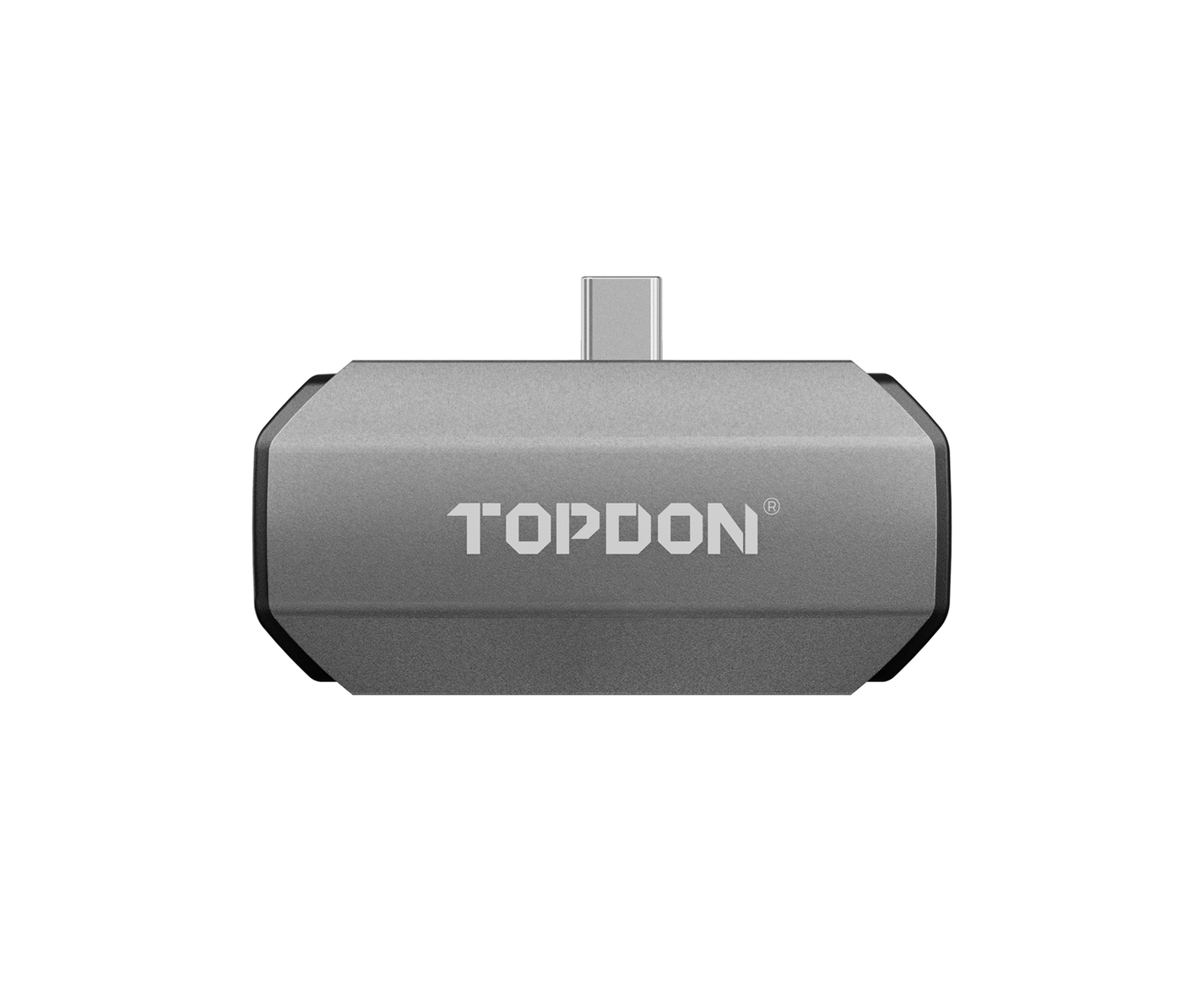

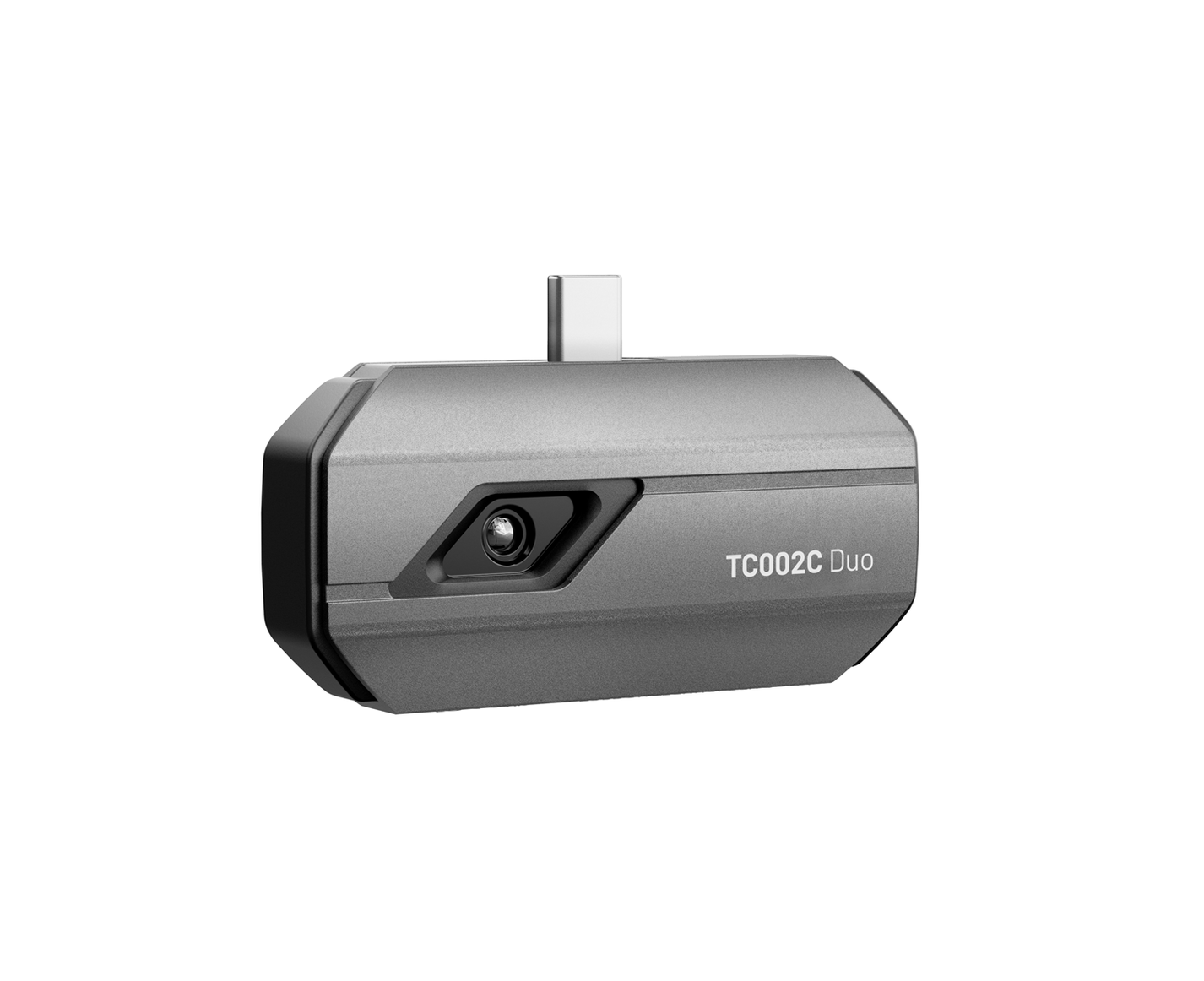

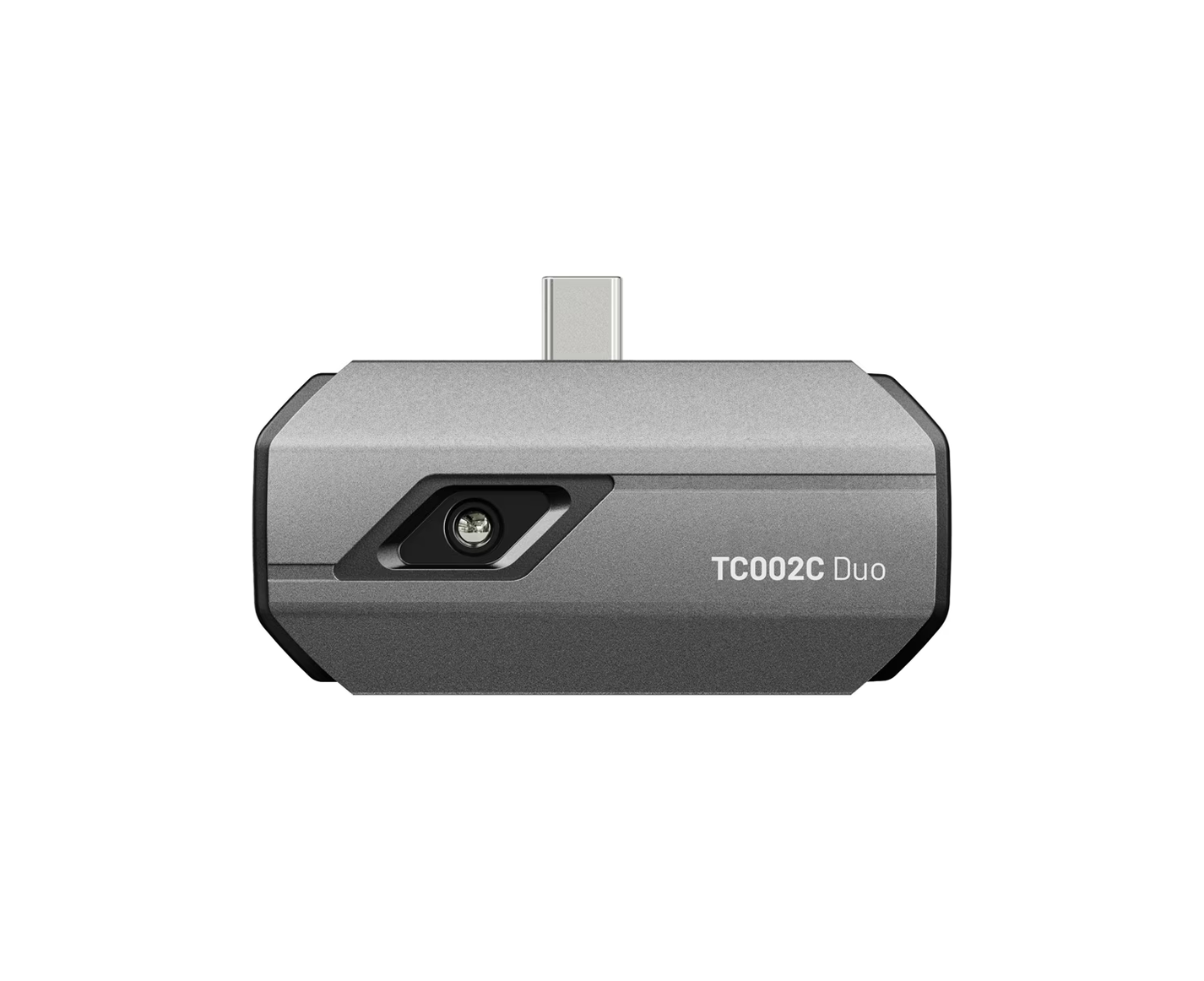

TOPDON TC002C Duo Thermal Imaging Camera
iOS • Android • Windows • USB-C • 512×384 Enhanced Thermal Imaging
Turn your smartphone, tablet, or Windows computer into a powerful
thermal imaging system with the
TOPDON TC002C Duo.
This compact USB-C thermal camera helps reveal heat that your eyes cannot see,
making it ideal for electronics repair, automotive diagnostics, HVAC,
electrical troubleshooting, building inspections, and everyday thermal analysis.
The TC002C Duo combines a 256×192 infrared sensor
with TOPDON’s TISR image-enhancement technology to produce thermal imagery up to
512×384.
Additionally, its smooth 25Hz refresh rate
makes real-time inspection fast and responsive.
⚡ Thermal Imaging Highlights
🔥
256×192 IR Sensor
Detailed native infrared imaging for identifying temperature differences.
✨
512×384 TISR Image
TOPDON image enhancement improves clarity for easier inspection.
⚡
25Hz Refresh Rate
Smooth live thermal imaging with responsive movement and scanning.
🎯
±2°C Accuracy
Reliable temperature measurements for professional diagnostics.
🔬 Made for Electronics Diagnostics
Thermal imaging is one of the most useful diagnostic tools on an electronics workbench.
The TC002C Duo can help locate
overheating ICs, shorted components, MOSFETs, voltage regulators, charging circuits,
power-management chips, damaged traces, and abnormal heat zones
without requiring you to touch every component manually.
At Trilex Fix, thermal imaging is especially useful
for motherboard diagnostics on gaming consoles, graphics cards, laptops,
handheld gaming PCs, and other advanced electronics.
🛠 What Can You Use It For?
💻 Electronics Repair
Locate abnormal heat on circuit boards, GPUs, laptops, consoles,
charging circuits, and power-management systems.
🚗 Automotive Diagnostics
Inspect electrical systems, wiring, batteries, brakes, cooling systems,
fuses, relays, and mechanical components for unusual heat.
❄️ HVAC Inspection
Identify temperature differences around vents, compressors,
air-conditioning systems, ducts, and refrigeration equipment.
⚡ Electrical Systems
Find overheating breakers, wiring connections, outlets,
electrical panels, and high-resistance connections.
🏠 Building Inspection
Reveal heat loss, insulation problems, drafts,
moisture-related temperature differences, and hidden HVAC issues.
🔋 Battery Testing
Observe heat distribution across batteries, connectors,
charging systems, and high-current electrical components.
📱 One Camera. Multiple Platforms.
The TC002C Duo uses a modern USB-C connection
and works with compatible USB-C
iPhones, iPads, Android devices, and Windows computers.
Simply connect the camera, launch the supported TOPDON software,
and your existing screen becomes your thermal display.
🍎 USB-C iPhone
📱 iPad USB-C
🤖 Android
🖥 Windows
🔥 -4°F to 1,022°F Measurement Range
From cold HVAC lines to extremely hot mechanical components,
the TC002C Duo measures temperatures from
-20°C to 550°C (-4°F to 1,022°F).
Its measurement accuracy reaches approximately
±2°C or ±2%, depending on operating conditions.
👁 See Subtle Temperature Differences
<40mK Thermal Sensitivity
High thermal sensitivity helps reveal small temperature differences
that may indicate hidden faults or developing problems.
Real-Time Thermal Scanning
A 25Hz refresh rate delivers smooth imaging as you move the camera
across circuit boards, machinery, vehicles, or buildings.
High / Low Temperature Detection
Use thermal analysis tools to identify hot and cold zones
without manually checking every point.
🧠 TOPDON TopInfrared App
The supported TopInfrared app turns your phone
or tablet into the control center for the thermal camera.
View thermal images in real time, analyze temperatures,
capture images, and use guided inspection features for common diagnostic scenarios.
Because your phone provides the display and processing interface,
you get a large, familiar screen without carrying a separate handheld thermal camera.
📊 Technical Specifications
| Model |
TOPDON TC002C Duo |
| Native IR Resolution |
256 × 192 |
| TISR Enhanced Image |
Up to 512 × 384 |
| Frame Rate |
25Hz |
| Thermal Sensitivity |
<40mK |
| Temperature Range |
-20°C to 550°C (-4°F to 1,022°F) |
| Measurement Accuracy |
±2°C or ±2% |
| Field of View |
56° × 42° |
| Spectral Range |
8–14 μm |
| Temperature Resolution |
0.1°C |
| Connection |
USB-C |
| Compatibility |
USB-C iOS, Android & Windows Devices |
| Device Weight |
Approx. 30g |
🔧 Why Add Thermal Imaging to Your Toolbox?
Traditional diagnostics tell you what a circuit or system is doing.
Thermal imaging lets you see where the energy is going.
That can dramatically speed up troubleshooting when a component,
connection, battery, motor, circuit, or mechanical system produces abnormal heat.
Additionally, the TC002C Duo weighs only about
30 grams, so you can keep professional thermal capability
in a toolbox, laptop bag, vehicle, or repair bench without carrying another large instrument.
⚠ Compatibility Notice
This version uses USB-C.
Confirm that your phone, tablet, or computer supports the required USB-C connection
and compatible TOPDON software before purchasing.
Cases that obstruct the USB-C port may need to be removed or used with a compatible extension cable.
